MAUI 44 SUB EXT

2 x 12″ powerful low resonance bandpass subwoofer
800 Watts RMS / 129 dB peak SPL / 40 – 140 Hz
Sub extension for MAUI 44 to double the bass performance (+6 dB)
Slave preset – follows settings of main subwoofer
Standalone preset – For use with any other PA speaker
LECC DSP for constantly adjusted bass response
Protection circuits for secure, reliable operation

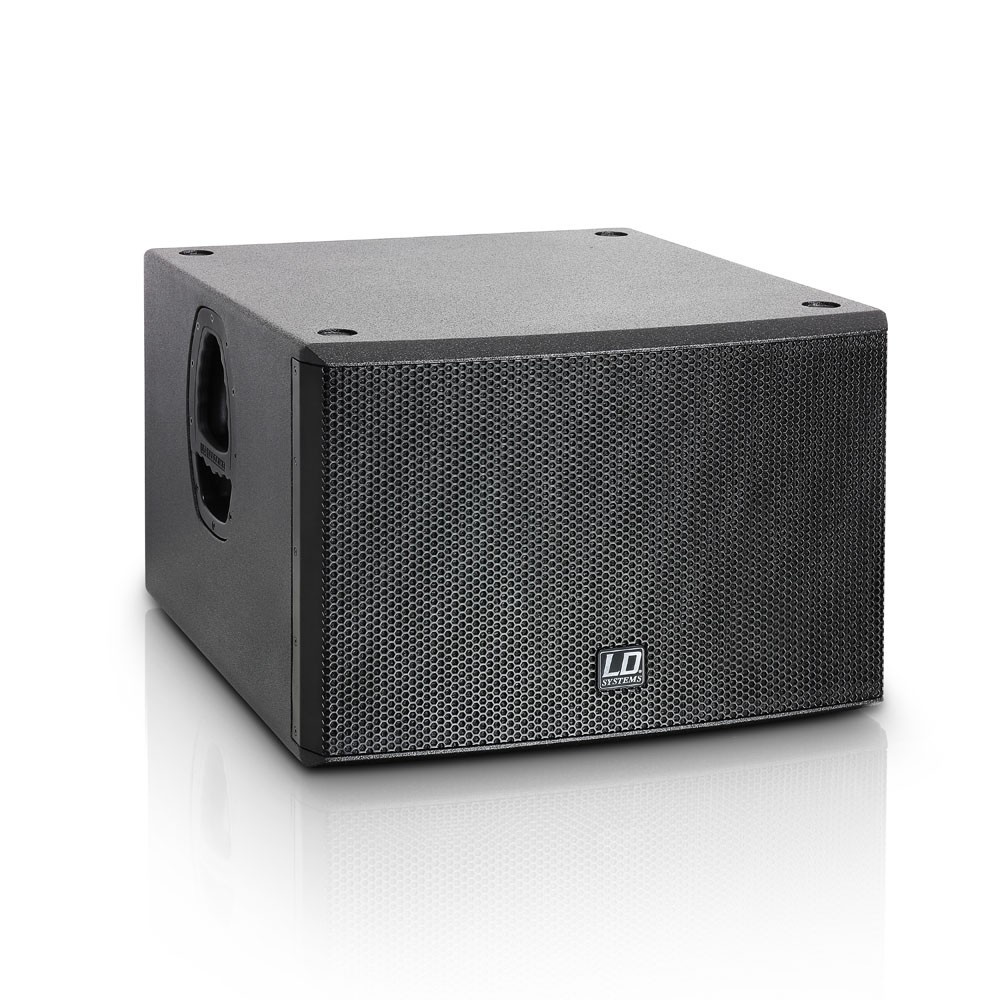

The LD Systems MAUI44SE is a powerful active subwoofer, especially designed for the extension of MAUI44 systems. The compact bandpass design augments the deep bass performance of the system by twice the SPL to (+6 dB) and can be integrated into the system within seconds. Through a slave preset, the MAUI44SE takes over the settings of the system subwoofer, a standalone preset allows it to be used with other satellite speakers.

The housing made of 15 mm multiplex is equipped with two 12″ neodymium woofers. The Class D amplifier of the MAUI44SE with highly efficient switching power supply provides a whopping 800 watts RMS; protection circuits against overvoltage, short circuit and overcurrent ensure reliable operation. The frequency response of the subwoofer ranges from 40 to 140 Hz, the maximum sound pressure is 129 dB.

An integrated LECC DSP with 24-bit converters and limiters, EQ, compressor and crossover functions provide an optimal bass reproduction. Furthermore, the MAUI44SE is equipped with controls for the subwoofer level, crossover frequency and phase, LED indicators and a Neutrik PowerCon mains connector. The ergonomic LD Systems Evolutive carrying handles allow for convenient transportation; an optional castor board can securely connect to the subwoofer via butterfly latches.
Product type
PA Complete Systems Accessories
Type
Subwoofer Expansions
Low/mid driver dimensions
2 x 12 ”
Woofer size
2 x 304.8 mm
Woofer magnet
Neodymium
Woofer brand
Custom-made
Amplifier
Class D
RMS
800 W
Frequency response
40 – 140 Hz
Max. SPL (continuous)
121 dB
Max. SPL (peak)
129 dB
Protection circuits
Multiband limiter , over voltage , over-current , short circuit
Controls
Power On/Off , Sub Freq (adjustable low-pass filter) , Sub level , Subwoofer Phase Reverse
Indicators
Limit , On , Protect (protection circuit engaged) , Signal
Line inputs
2
Line input connectors
6.3 mm jack , RCA , XLR
Line outputs
1
Line output connectors
XLR
Operating voltage
Switching power supply
Operating voltage
100 V AC – 120 V AC, 50 – 60 Hz , 220 V AC – 240 V AC, 50-60 Hz
Cabinet material
15 mm Plywood
Cabinet surface
Polyurea
Cabinet construction
Bandpass
Width
620 mm
Height
412 mm
Depth
615 mm
Weight
40,8 kg
