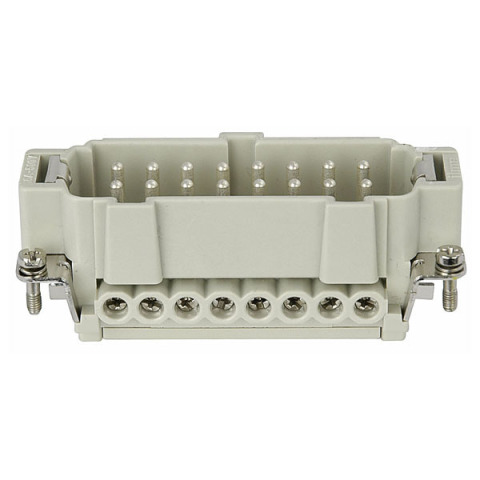

Model Male insert
Version Screw terminal connections
Series JNE
Product type With male contacts
Variant With plate
Family JEI® inserts
Size Size “77.27”
N. of poles 16 poles +Technical data
Current 16 A (A.C. and D.C.)
Voltage 500 V
Rated impulse withstand voltage 6 kV
Pollution degree 3
Wire cross-section 0,50 mm² – 4,00 mm²
AWG size 20 – 12
Operating temperature range (min, max) -40°C … +125°C
Contact type Tin plated
Mating cycles ≥ 200
IP degree of protection IP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure
PE wire cross-section 0,14 – 4 mm2; AWG 20 – 12
Version Screw terminal connections
Series JNE
Product type With male contacts
Variant With plate
Family JEI® inserts
Size Size “77.27”
N. of poles 16 poles +Technical data
Current 16 A (A.C. and D.C.)
Voltage 500 V
Rated impulse withstand voltage 6 kV
Pollution degree 3
Wire cross-section 0,50 mm² – 4,00 mm²
AWG size 20 – 12
Operating temperature range (min, max) -40°C … +125°C
Contact type Tin plated
Mating cycles ≥ 200
IP degree of protection IP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure
PE wire cross-section 0,14 – 4 mm2; AWG 20 – 12
Further technical details
Characteristics according to EN 61984 16A 500V 6kV 3; 16A 400/690V 6kV 2
Insulation resistance ≥ 10 GΩ
Rated voltage according to UL/CSA 600V
UL 94 flammability rating V-0
Weight 82,00 g
Approvals / Standards
Reference standard EN 61984:2009-06
Quality mark DNV-GL, EAC
Conformity CQC, CE
EAN:
8717748029737
